	TFT

	Monochrome LCM

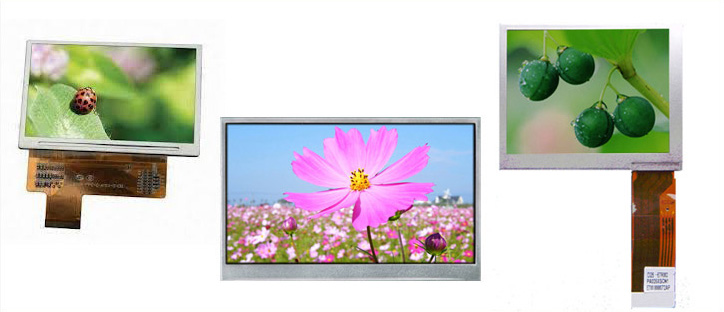

Standard TFT

Model No#	Panel Size	Resolution	Viewing Direction	Outline Dimension (mm)	Active area (mm)	Brightness (cd/m2)	Touch panel	Operating temperature range
KT028PIQW-A01	2.8"	240*320	6 o'clock	50.00 x 69.20 x 2.45	43.20 x 57.60	250	Up on request (CTP or RTP)	-20~70C
KT030LIQW-A01	3.0"	320*240	12 o'clock	74.92 x 42.74 x 2.60	65.52 x 36.84	250		-20~70C
KT030PCWW-A01	3.0"	240*400	12 o'clock	45.04 x 77.00 x 2.60	38.88 x 64.80	250		-20~70C
KT035LIQW-A01	3.5"	320*240	6 o'clock	77.80 x 120.40 x 5.45	70.08 x 52.56	280		-20~70C
KT043LCWN-A01	4.3"	480*272	12 o'clock	105.50 x 67.20 x 5.19	95.04 x 53.86	360		-10~60C
KT043LCWW-A01	4.3"	480*272	12 o'clock	105.50 x 67.20 x 2.60	95.04 x 53.86	280		-20~70C
KT050LCWW-A01	5.0"	480*272	12 o'clock	120.70 x 75.80 x 4.30	110.88 x 62.83	280		-20~70C
KT050LCWW-A02	5.0"	800*480	6 o'clock	119.00 x 135.00 x5.67	110.00 x 67.40	360		-20~70C
KT070LCWW-A01	7.0"	800*480	6 o'clock	164.10 x 99.20 x 3.55	154.08 x 85.92	280		-20~70C
KT070LCSN-A01	7.0"	1024*600	6 o'clock	165.75 x 105.39 x 7.15	153.60 x 90.00	280		-20~60C
KT070LCWW-A02	7.0"	800*480	12 o'clock	165.00 x 106.00 x 8.76	152.40 x 91.44	1000		-20~70C
KT070LCWW-A03	7.0"	800*480	12 o'clock	164.90 x 100.00 x 5.70	154.08 x 85.92	350		-20~70C
KT097LIXW-A01	9.7"	1024*768	3 o'clock	210.20 x 166.30 x 3.55	196.61 x 147.46	350		-20~70C
KT121LIXW-A01	12.1"	1024*768	0	260.50 x 204.00 x 14.53	245.76 x 184.32	480		-25~75C

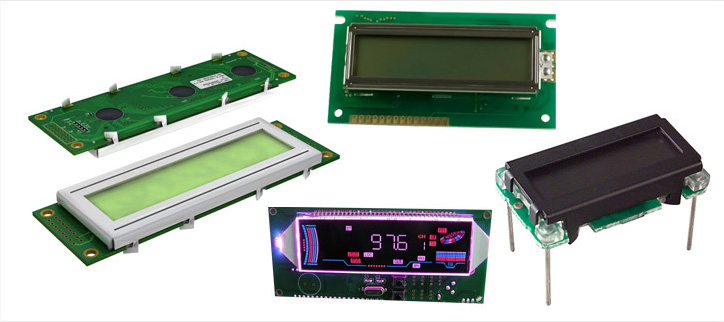

Standard Character LCM (COB)

Model No#	Display (Characters x line)	Technology	Background color	Rear Polarizer	Mode	LED B/L	Module size	V.A.	Op. Temp range	Viewing Angle
KBC008001A	8x1	STN	Y/G	Rf	Pos	Nil	60.0x33.0	44.0x13.0	-20~70	6:00
KBC008001A	8x1	STN	Y/G	Tf	Pos	Y/G	60.0x33.0	44.0x13.0	-20~70	6:00
KBC008001B	8x1	STN	Y/G	Rf	Pos	Nil	84.0x44.0	61.0x15.8	0~50C	6:00
KBC008001B	8x1	STN	Y/G	Tf	Pos	Y/G	84.0x44.0	61.0x15.8	-20~70	6:00
KBC008001C	8x1	STN	Y/G	Rf	Pos	Nil	80.0x36.0	61.0x15.8	0~50C	6:00
KBC008001C	8x1	STN	Y/G	Tf	Pos	Y/G	80.0x36.0	61.0x15.8	-20~70	6:00
KBC008002B	8x2	STN	Y/G	Tf	Pos	Y/G	40.0x29.5	31.0x14.5	-20~70	6:00
KBC008002B	8x2	STN	Grey	Tf	Pos	Y/G	40.0x29.5	31.0x14.5	-20~70	6:00
KBC008002D	8x2	STN	Y/G	Tf	Pos	Y/G	58.0x32.0	38.0x16.0	-20~70	6:00
KBC008002E	8x2	STN	Y/G	Tf	Pos	Y/G	84.0x44.0	63.0x25.0	-20~70	6:00
KBC016001A	16x1	STN	Y/G	Tm	Pos	Y/G	80.0x36.0	65.0x14.0	-20~70	12:00
	16x1	STN	Y/G	Tm	Pos	Y/G	80.0x36.0	65.0x14.0	-20~70	12:00
	16x1	STN	Grey	Tf	Pos	Y/G	80.0x36.0	65.0x14.0	-20~70	12:00
	16x1	STN	Blue	Tm	Neg	White	80.0x36.0	65.0x14.0	-20~70	6:00
	16x1	FSTN	Grey	Tf	Pos	White	80.0x36.0	65.0x14.0	-20~70	6:00
KBC016001B	16x1	STN	Y/G	Tf	Pos	Nil	122.0x33.0	99.0x13.0	-20~70	6:00
	16x1	STN	Y/G	Tf	Pos	Y/G	122.0x33.0	99.0x13.0	-20~70	6:00
	16x1	FSTN	Grey	Tf	Pos	White	122.0x33.0	99.0x13.0	-20~70	6:00
	16x1	FSTN	Grey	Tf	Pos	RGB	122.0x33.0	99.0x13.0	0~50C	6:00
	16x1	FFSTN	Black	Tm	Neg	White	122.0x33.0	99.0x13.0	-20~70	6:00
KBC016002A	16x2	STN	Grey	Tf	Pos	Nil	80.0x36.0	62.2x17.9	-20~70	6:00
	16x2	STN	Y/G	Tf	Pos	Y/G	80.0x36.0	62.2x17.9	-20~70	6:00
	16x2	STN	Grey	Tf	Pos	Y/G	80.0x36.0	62.2x17.9	-20~70	6:00
	16x2	STN	Blue	Tm	Neg	White	80.0x36.0	62.2x17.9	-20~70	6:00
	16x2	STN	Grey	Tm	Pos	White	80.0x36.0	62.2x17.9	-20~70	12:00

KBC016002B	16x2	STN	Y/G	Tm	Pos	Y/G	80.0x36.0	64.3x13.7	-20~70	6:00
KBC016002C	16x2	STN	Y/G	Rf	Pos	Nil	122.0x44.0	99.0x25.0	-20~70	6:00
	16x2	STN	Y/G	Tm	Pos	Y/G	122.0x44.0	99.0x25.0	-20~70	6:00
	16x2	STN	Blue	Tm	Neg	White	122.0x44.0	99.0x25.0	-20~70	6:00
	16x2	FSTN	Grey	Tf	Pos	White	122.0x44.0	99.0x25.0	-20~70	6:00
	16x2	FFSTN	Black	Tm	Neg	Amber	122.0x44.0	99.0x25.0	-20~70	12:00
KBC016002E	16x2	STN	Y/G	Rf	Pos	Nil	80.0x36.0	64.0x16.0	-20~70	6:00
	16x2	STN	Y/G	Tm	Pos	Y/G	80.0x36.0	64.0x16.0	-20~70	6:00
	16x2	STN	Blue	Tm	Neg	White	80.0x36.0	64.0x16.0	-20~70	6:00
	16x2	FSTN	Grey	Tf	Pos	White	80.0x36.0	64.0x16.0	-20~70	6:00
KBC016002F	16x2	STN	Y/G	Rf	Pos	Nil	85.0x30.0	65.0x17.2	-20~70	6:00
	16x2	STN	Y/G	Tf	Pos	Y/G	85.0x30.0	65.0x17.2	-20~70	12:00
	16x2	STN	Blue	Tm	Neg	White	85.0x30.0	65.0x17.2	-20~70	6:00
KBC016002G	16x2	STN	Y/G	Rf	Pos	Nil	84.0x44.0	62.0x18.0	-20~70	6:00
	16x2	STN	Y/G	Tf	Pos	Y/G	84.0x44.0	62.0x18.0	-20~70	6:00
	16x2	STN	Blue	Tm	Neg	White	84.0x44.0	62.0x18.0	-20~70	6:00
KBC016004A	16x4	STN	Y/G	Rf	Pos	Nil	74.0x24.5	60.0x11.5	-20~70	6:00
	16x4	STN	Y/G	Tf	Pos	Y/G	74.0x24.5	60.0x11.5	-20~70	6:00
	16x4	STN	Grey	Tf	Pos	Y/G	74.0x24.5	60.0x11.5	-20~70	6:00
	16x4	STN	Blue	Tm	Neg	White	74.0x24.5	60.0x11.5	-20~70	6:00
	16x4	FSTN	Grey	Tf	Pos	White	74.0x24.5	60.0x11.5	-20~70	6:00
	16x4	FFSTN	Black	Tm	Neg	White	74.0x24.5	60.0x11.5	-20~70	6:00
KBC020002A	20x2	STN	Y/G	Tf	Pos	Y/G	116.0x37.0	82.8x19.8	-20~70	6:00
	20x2	STN	Grey	Tf	Pos	Y/G	116.0x37.0	82.8x19.8	-20~70	6:00
	20x2	STN	Blue	Tm	Neg	White	116.0x37.0	82.8x19.8	-20~70	6:00
	20x2	FSTN	Grey	Tm	Pos	White	116.0x37.0	82.8x19.8	-20~70	6:00
	20x2	FFSTN	Black	Tm	Neg	White	116.0x37.0	82.8x19.8	-20~70	6:00
KBC020002B	20x2	STN	Y/G	Tf	Pos	Y/G	180.0x40.0	149.0x23.0	-20~70	6:00
KBC020002F	20x2	STN	Blue	Tm	Neg	White	146.0x43.0	123.0x23.0	-20~70	12:00
KBC020002F	20x2	FSTN	Grey	TF	Pos	White	146.0x43.0	123.0x23.0	-20~70	6:00
KBC020004B	20x4	STN	Y/G	Tm	Pos	Y/G	98.0x60.0	77.0x26.5	-20~70	12:00
	20x4	STN	Blue	Tm	Neg	White	98.0x60.0	77.0x26.5	-20~70	6:00
	20x4	FSTN	Grey	Tf	Pos	White	98.0x60.0	77.0x26.5	-20~70	6:00
	20x4	FFSTN	Black	Tm	Neg	White	98.0x60.0	77.0x26.5	-20~70	6:00
KBC020004C	20x4	STN	Y/G	Tf	Pos	Y/G	77.0x47.0	60.0x22.0	-20~70	6:00
KBC020004C	20x4	STN	Blue	Tf	Pos	Y/G	77.0x47.0	60.0x22.0	-20~70	6:00

KBC020004G	20x4	STN	Y/G	Tm	Pos	Y/G	98.0x60.0	77.0x26.5	-20~70	12:00
KBC020004G	20x4	STN	Grey	Tm	Neg	White	98.0x60.0	77.0x26.5	-20~70	6:00
KBC020004H	20x4	STN	Y/G	Tf	Pos	Y/G	146.0x62.5	123.5x43.0	-20~70	6:00
KBC020004H	20x4	FFSTN	Black	Tm	Neg	White	146.0x62.5	123.5x43.0	-20~70	6:00
KBC024002A	24x2	STN	Y/G	Tf	Pos	Y/G	118.0x36.0	94.4x18.2	-20~70	6:00
	24x2	STN	Grey	Tf	Pos	White	118.0x36.0	94.4x18.2	-20~70	12:00
	24x2	FFSTN	Black	Tm	Neg	White	118.0x36.0	94.4x18.2	-20~70	6:00
KBC040002A	40x2	STN	Y/G	Rf	Pos	Nil	182.0x33.5	154.5x15.8	-20~70	6:00
	40x2	STN	Y/G	Tm	Pos	Y/G	182.0x33.5	154.5x15.8	-20~70	6:00
	40x2	STN	Blue	Tm	Neg	White	182.0x33.5	154.5x15.8	-20~70	6:00
	40x2	FSTN	Grey	Tm	Pos	White	182.0x33.5	154.5x15.8	-20~70	6:00
	40x2	FFSTN	Black	Tm	Neg	White	182.0x33.5	154.5x15.8	-20~70	6:00
KBC040004A	40x4	STN	Y/G	Tm	Pos	Y/G	190.0x54.0	149.0x30.0	-20~70	6:00
KBC040004B	40x4	STN	Y/G	Tf	Pos	Y/G	190.0x54.0	149.0x30.0	-20~70	6:00
	40x4	STN	Blue	Tm	Pos	White	190.0x54.0	149.0x30.0	-20~70	6:00
	40x4	FSTN	Grey	Tm	Pos	Y/G	190.0x54.0	149.0x30.0	-20~70	6:00
KBC040004C	40x4	STN	Y/G	Tf	Pos	Y/G	288.3x77.5	253.8x56.6	-20~70	6:00

Standard COG

Model No#	Display (dots x dots)	Technology	Background color	Rear Polarizer	Mode	LED B/L	Module size	V.A.	Op. Temp range	Viewing Angle
KBG122032H	122x32	STN	Blue	Tm	Neg	White	84.0x44.0	61.0x19.5	-20~70C	12:00
KBG122032F	122x32	STN	Y/G	Tf	Pos	Y/G	65.4x29.1	54.8x19.1	-20~70C	6:00
KBG122032G	122x32	STN	Y/G	Tf	Pos	Y/G	80.0x36.0	60.5x18.5	-20~70C	6:00
	122x32	STN	Blue	Tm	Neg	White	80.0x36.0	60.5x18.5	-20~70C	6:00
	122x32	FSTN	Grey	Tf	Pos	White	80.0x36.0	60.5x18.5	-20~70C	6:00
	122x32	FFSTN	Black	Tm	Neg	White	80.0x36.0	60.5x18.5	-20~70C	6:00
KBG128064A	128x64	STN	Y/G	Tf	Pos	Y/G	93.0x70.0	70.7x38.8	-20~70C	6:00
	128x64	STN	Blue	Tm	Neg	White	93.0x70.0	70.7x38.8	-20~70C	6:00
	128x64	FSTN	Grey	Tf	Pos	White	93.0x70.0	70.7x38.8	-20~70C	6:00
	128x64	FSTN	Black	Tm	Neg	White	93.0x70.0	70.7x38.8	-20~70C	6:00
KBG128064B	128x64	FSTN	Grey	Rf	Pos	Nil	54.0x50.0	44.5x30.0	-20~70C	6:00
KBG128064B	128x64	FSTN	Grey	Tf	Pos	EL	54.0x50.0	44.5x30.0	-20~70C	6:00
KBG128064C	128x64	STN	Y/G	Tf	Pos	Y/G	78.0x70.0	62.0x44.0	0~50C	6:00
	128x64	STN	Blue	Tm	Neg	White	78.0x70.0	62.0x44.0	-20~70C	6:00
	128x64	FSTN	Grey	Tf	Pos	White	78.0x70.0	62.0x44.0	-20~70C	6:00
KBG128064F	128x64	STN	Y/G	Tf	Pos	Y/G	78.0x70.0	62.0x44.0	-20~70C	6:00
KBG128064F	128x64	FSTN	Grey	Tf	Pos	White	78.0x70.0	62.0x44.0	-20~70C	6:00
KBG128064G	128x64	STN	Y/G	Tf	Pos	Y/G	113.0x65.0	73.5x39.0	-20~70C	6:00
KBG128064G	128x64	FSTN	Black	Tm	Neg	Y/G	113.0x65.0	73.5x39.0	-20~70C	6:00
KBG128064H	128x64	STN	Y/G	Tf	Pos	Y/G	75.0x52.8	60.0x32.6	-20~70C	6:00
	128x64	STN	Blue	Tm	Neg	White	75.0x52.8	60.0x32.6	-20~70C	6:00
	128x64	FSTN	Grey	Tf	Pos	White	75.0x52.8	60.0x32.6	-20~70C	6:00
	128x64	FFSTN	Black	Tm	Neg	White	75.0x52.8	60.0x32.6	-20~70C	6:00
KBG192048A	192x48	STN	Y/G	Tf	Pos	Y/G	122.4x52.7	99.0x24.0	-20~70C	6:00
KBG192048A	192x48	STN	Blue	Tm	Neg	White	122.4x52.7	99.0x24.0	-20~70C	6:00
KBG192064E	192x64	STN	Y/G	Tf	Pos	Y/G	100.0x60.0	84.0x31.0	-20~70C	6:00
KBG192064F	192x64	STN	Y/G	Tf	Pos	Y/G	120.0x62.0	104.0x39.0	-20~70C	6:00
KBG192064F	192x64	FSTN	Grey	Tf	Pos	White	120.0x62.0	104.0x39.0	-20~70C	6:00
KBG240064B	240x64	STN	Y/G	Tf	Pos	Y/G	180.0x65.0	132.0x39.0	-20~70C	6:00
KBG240064B	240x64	STN	Blue	Tm	Neg	White	180.0x65.0	132.0x39.0	-20~70C	6:00
KBG240128C	240x128	STN	Y/G	Tf	Pos	Y/G	144.0x104.0	114.0x64.0	-20~70C	6:00
KBG240128S	240x128	STN	Blue	Tm	Neg	White	144.0x104.0	114.0x64.0	-20~70C	6:00
	240x128	FSTN	Grey	Tf	Pos	White	144.0x104.0	114.0x64.0	-20~70C	6:00
	240x128	FFSTN	Black	Tm	Neg	White	144.0x104.0	114.0x64.0	-20~70C	6:00
KBG240128T	240x128	STN	Blue	Tm	Neg	White	144.0x104.0	114.0x64.0	-20~70C	6:00
KPG320240B	320x240	STN	Blue	Tm	Neg	White	160.0x109.0	123.0x92.0	-20~70C	6:00

Standard COG

Model No#	Display	Technology	Background color	Rear Polarizer	Mode	LED B/L	Module size	V.A.	LCD thickness	Vop
KGC016002A	16x2	FSTN	Grey	Tf	Pos	White	65.0x27.7	61.0x15.7	1.1	4.5
KGG128064A	128x64	STN	Y/G	Tf	Pos	Y/G	80.0x54.0	70.7x38.8	0.7	9.8
	128x64	FSTN	Grey	Tf	Pos	White	80.0x54.0	70.7x38.8	0.7	9.8
	128x64	FFSTN	Black	Tm	Neg	White	80.0x54.0	70.7x38.8	0.7	9.8
KGG128128D	128x128	FSTN	Grey	Tf	Pos	Nil	48.0x52.8	44.0x40.5	0.7	12.0
KGG128128D	128x128	FSTN	Grey	Tf	Pos	White	48.0x52.8	44.0x40.5	0.7	12.0
KGG240064A	240x64	STN	Y/G	Tf	Pos	Y/G	134.6x55.1	111.0x37.0	0.7	10.0
	240x64	FSTN	Grey	Tf	Pos	White	134.6x55.1	111.0x37.0	0.7	10.0
	240x64	FFSTN	Black	Tm	Neg	White	134.6x55.1	111.0x37.0	0.7	10.0
KGG240128A	240x128	FSTN	Grey	Tf	Pos	White	101.3x92.3	92.0x60.5	0.7	14.5
KGG240160A	240x160	FSTN	Grey	Tf	Pos	White	60.0x51.7	56.0x38.7	1.1	15.6
KGG240160B	240x160	FSTN	Grey	Tf	Pos	White	105.5x67.2	99.0x57.5	0.55	16
